Introduction
- Mounts under the front eade of a work station to save work space
- Two banana jacks provide two grounding points for wrist straps or cart
- Specially designed for use at workstations and table mats
- Ring terminal at end of ground cord allows easy attachment to electrical ground

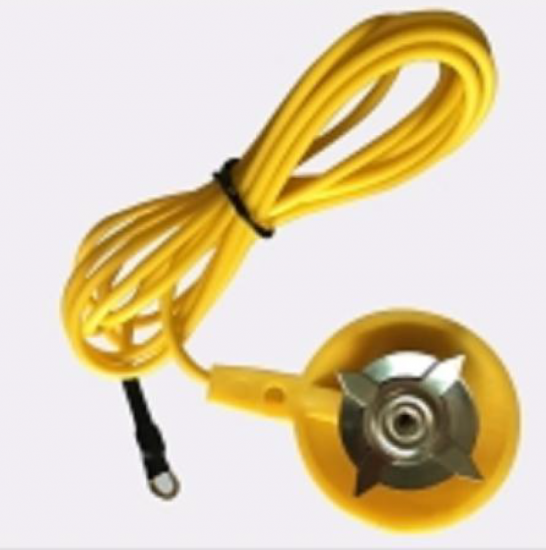

- 1.8M length cable ESD Ring Terminal Anti Static Ground for Wrist Strap
Wrist Material Conductive fiber + elastic
Features:
Easy to install, two ring terminal at end of ground cord allows easy attachment to electrical ground
Designed for use at workstations, provides a common grounding point for one or two wrist straps, as well as table mats and runners

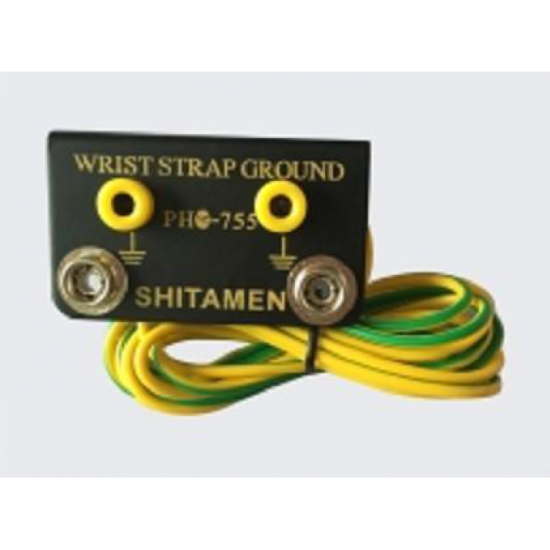

It is designed to mount under the front edge of a work station, The Wrist Strap Ground allows up to two operators to ground their wrist straps using standard banana jacks
6. Package Included: 1 Set of Wrist Strap Belt Ground Connector
Please get FREE inquiry to buy best anti static bracelet in Yufa TEFA CO LTD.
|
|
 |
 |
 |
 |
 |
Anti Static Heel Straps provide protection for staff on the move. Constructed from durable materials, these Heel-Straps connect the person wearing them to ground via a proper floor mat or flooring material. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. The ribbon connects to the conductive rubber to complete the circuit between the operator and the static controlled floor or mat. A buried 1 meg ohm resistor is standard.
Anti Static Wrist Strap Specification:
|
Product name |
Single circuit ESD wrist strap |
Double circuit ESD wrist strap |
Silicone wrist strap |
Metal ESD wrist strap |
|
Series |
Yufa-WS-01 |
Yufa-WS-02 |
Yufa-WS-03 |
Yufa-WS-04 |
|
Color |
Blue /Black |
Rose red |
Blue |
|
|
Discharge time |
0.1s |
|||
|
Resistor |
1 mega ohms |
|||
|
Snaps number |
1 |
2 |
1 |
1 |
|
Wrist Strap |
||||
|
Material |
Elastic nylon fiber |
Silicone |
Metal |
|
|
Resistance |
≤104Ω |
|||
|
Length (Perimeter) |
1.8m-2.4m |
|||
|
Cord |
||||
|
Material |
PU + Copper/AL Cord |
|||
|
Length |
1.8m/3m/4m,can be customized |
|||
|
Test |
100% conduction test |
|||
Application:
Mainly used in electronics industry ,Such as PCB Manufacturing , Semiconductor industry, Network communication and Consumer Electronics.
