ESD Cordless Crape Black Armband Wrist Strap
Introduction
ESD wrist strap is the basic antistatic products which are most commonly used in cleanroom, SMT inductry and production lines. It's economical and easy to operate. When operating, it discharges antistatic on human body to the ground through wrist strap and grounding wire. Therefore, when use the product the human skin must toch the wirst strap. The grounding wire shall also be directly connected to the ground to ensure its smooth grounding and performance.
Wrist Material Conductive fiber + elastic
Feature Anti-static
Color Blue
Ground resistance 106Ω-109Ω
Contact 360 degress around wrist
Decay time 0.1 second
Packaging Detail 1pcs/box,according to customer's request
Please get FREE inquiry to buy best anti static bracelet in Yufa TEFA CO LTD.
|
|
|
|
|
|
Anti Static Heel Straps provide protection for staff on the move. Constructed from durable materials, these Heel-Straps connect the person wearing them to ground via a proper floor mat or flooring material. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. The ribbon connects to the conductive rubber to complete the circuit between the operator and the static controlled floor or mat. A buried 1 meg ohm resistor is standard.

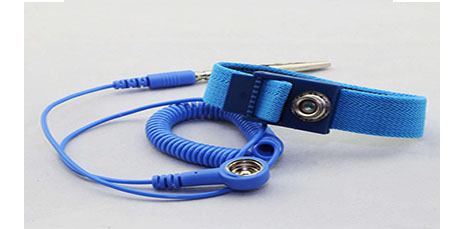

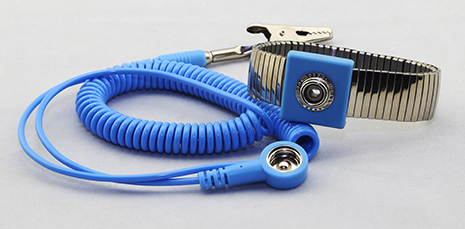

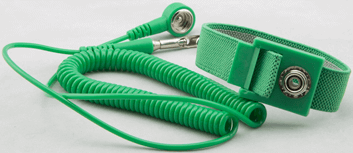

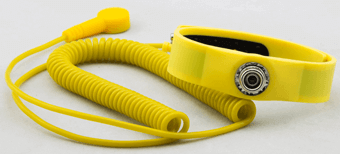

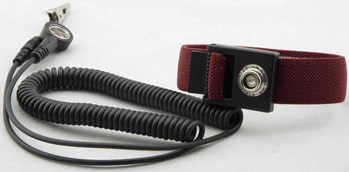

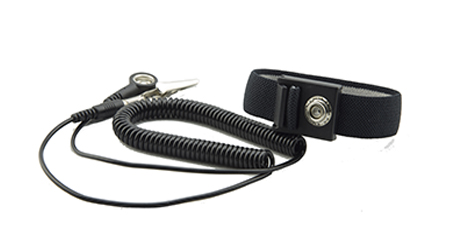

Anti Static Wrist Strap Specification:
Product name |
Single circuit ESD wrist strap |
Double circuit ESD wrist strap |
Silicone wrist strap |
Metal ESD wrist strap |
Series |
Yufa-WS-01 |
Yufa-WS-02 |
Yufa-WS-03 |
Yufa-WS-04 |
Color |
Blue /Black |
Rose red |
Blue |
|
Discharge time |
0.1s |
|||
Resistor |
1 mega ohms |
|||
Snaps number |
1 |
2 |
1 |
1 |
Wrist Strap |
||||
Material |
Elastic nylon fiber |
Silicone |
Metal |
|
Resistance |
≤104Ω |
|||
Length (Perimeter) |
1.8m-2.4m |
|||
Cord |
||||
Material |
PU + Copper/AL Cord |
|||
Length |
1.8m/3m/4m,can be customized |
|||
Test |
100% conduction test |
Application:
Mainly used in electronics industry ,Such as PCB Manufacturing , Semiconductor industry, Network communication and Consumer Electronics.
