Anti-static Blister Tray

ESD Plastic Blister tray can effective release object surface static. make its accumulated electrostatic charge buildup and does not produce high potentials;

  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shekou, China
Inquiry now
Product Details

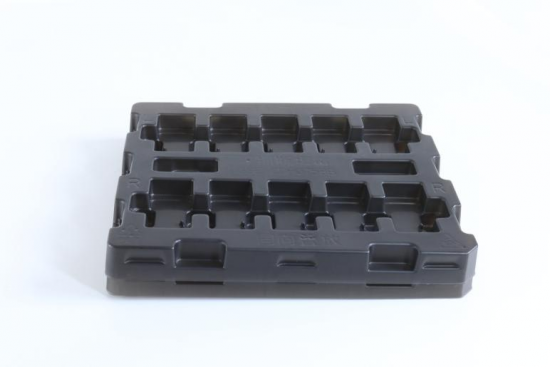

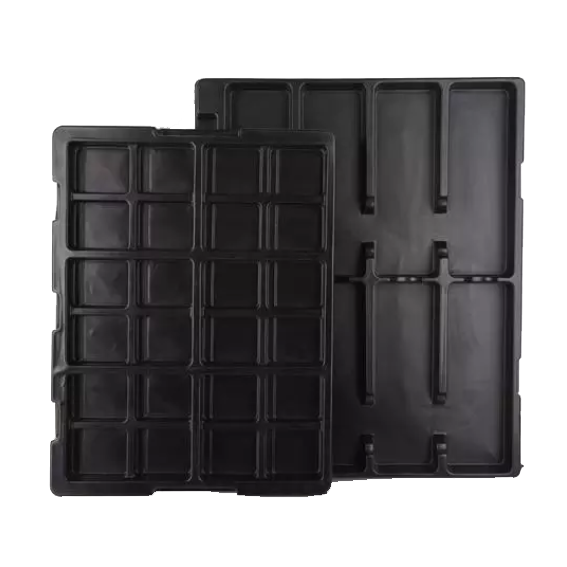

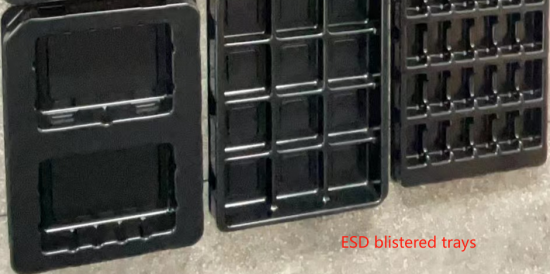

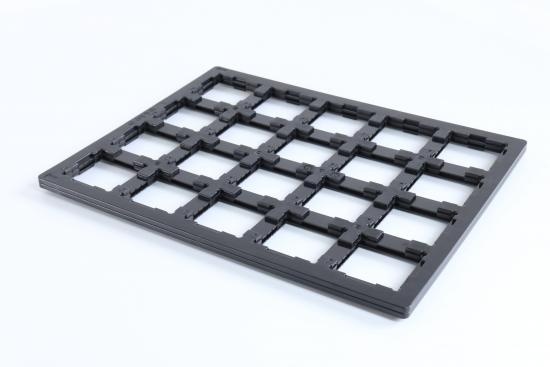

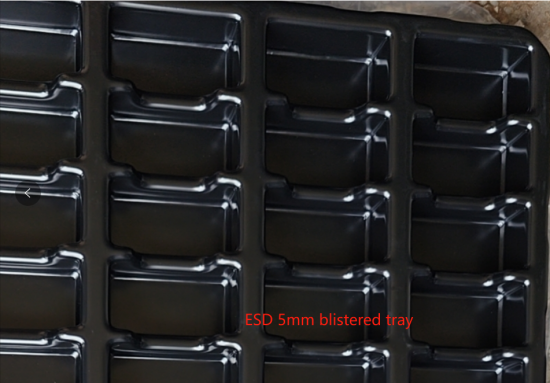

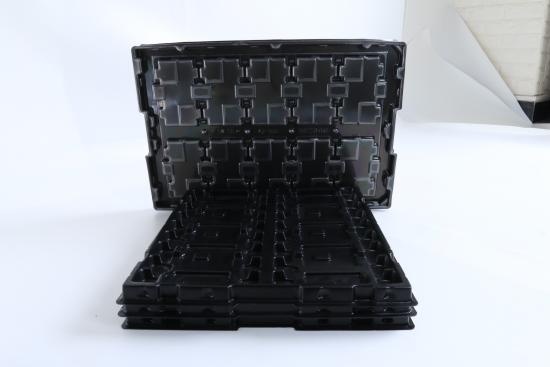

Customized shape PCB ESD anti-static blister tray


Specifications:

Plastic Blister Packing
- Vacuum formed Tray
- PVC, PS material
- Logo or name customized
- CAD drawing and 3D modelin

General Information:

Plastic blister packing tray is made of PVC or PS as basic material. It can nomal or be made with antistatic or ESD properties with black color. It has very good property and the conductive property will not be influenced by any humidity and temperature factors. It is permanent conductive.

We could make quick customize design. 3D model and 2D drawing will be made for PVC Blister mold. Different mold could be selected with balance of Qty. and cost.

Material PVC, PS
Thickness 0.3-8.0mm
Appearance Transparent or black
Conductive 10e4-10e6 ohms
Anti-static 10e6-10e9 ohms / 10e9-10e11 ohms
Model LN-3400
Product Antistatic Blister customized blister

Appliction of Antistatic Blister customized blister:

Disk industries
Semiconductor industries
Electronic product assembly and packaging
This material can be made into IC tray, LCD tray, Electronic Component tray, FPC tray etc. The surface resistance is very stable even after vacuum forming. It has very good property and the conductive property will not be influenced by any humidity and temperature factors.






Antistatic Tray Function:
1.Used to guarantee the protection of your electronics from damage during transit,retail and display.
2.Maximum comfort during transport.
3.Adaptable to all types of outer packaging.
4.Can achieve good packing effect.
5.A soft and smooth surface, very resistant to stress and cracking.
6.Preventing from cutting people.
7.The weight / volume ratio used for the different sizes of goods.

Anti-static tray Applications:

The Anti-static Injection Tray has strong mechanical properties.Antistatic turnover tray can effectively release accumulated charge surface, making it won't produce charge accumulation and high potential difference; With tenacity wear-resisting, moistureproof prevent corrosion, heat insulation effects, and electronic components and products, and it's Non-toxic, tasteless, moistureproof, corrosion resistance, light weight, durable, can be stacked, appearance is luxuriant.
