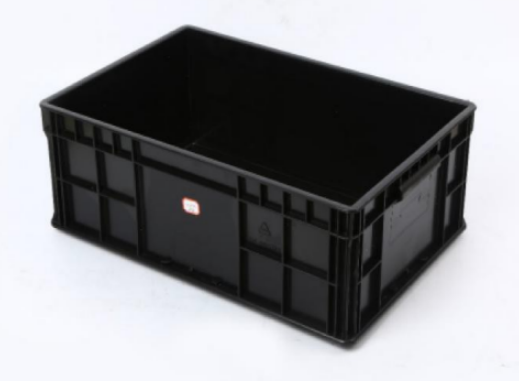

1. TDS
|
Name |
ESD Box |
|
Type |
C-319 |
|
Material |
ESD PP & Alloy Materials |
|
Specifications |
● External Dimension：600*400*220mm ● Internal Dimension：560*360*215mm ● Sidewall Thickness 3mm；Bottom Thickness 5mm ● Weight：3.1Kg |
|
Resistance Value |
104-107 Ω |
|
Optional accessories |

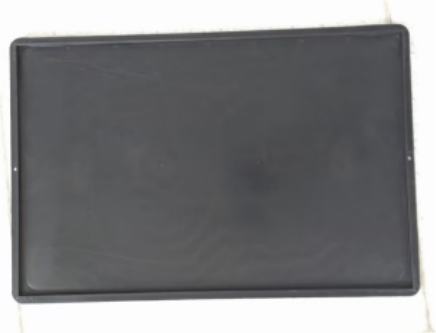

□隔板 ☑箱盖 □文件夹 |
2. Purpose
The ESD Box is widely used in industries such as machinery, automobiles, household appliances, light industry, electronics, etc., and has the following characteristics:
● It is acid and alkali resistant, oil resistant, non-toxic and odorless, It can be used to hold electronic industrial elements,
● Easy to clean, easy to turnover, neatly stacked, and easy to manage. Suitable for the transportation, distribution, storage, processing and turnover of products;
● The ESD Box can be matched with various logistics containers and workstations, and is suitable for various warehouses, production sites, and other occasions.
3. Usage method
The correct use of ESD Boxes should achieve reasonable product placement, stacking, storage and transportation.
● Carrying capacity: ＜ 40 Kg
● Stacking layers:＜ 8
● Stacking method: single-layer or multi-layer interleaved stacking
● Transportation: packaged with stretch film or shrink film, moisture-proof and waterproof, keeping the box dry; When stored products, it is best to use a cover plate for protection
● Storage: stored on shelves or pallets
4. Usage conditions
● Operating temperature: -20 ℃ ≤ T ≤ 60 ℃
● Operating Environment: Normal temperature, indoor, outdoor, and dry place for use
5. matters needing attention
● Prohibition of long-term overload use
● Avoid prolonged exposure to sunlight
● Prohibit throwing from high places
● Place the goods evenly inside the box to avoid centralized or eccentric stacking
● Please read the user manual before use
